An accurate electrical sensor capable of measuring positive voltages up to 85V, positive and negative currents up to 4A, and positive and negative load powers up to 340W, compatible with all WiFi-enabled SpaceMotionery modules, for testing small satellites (such as example CubeSats) and for carrying out various physics and STEM experiments, but also for automating electronic measurements, under the real-time control of a Smartphone or PC.
Sale!

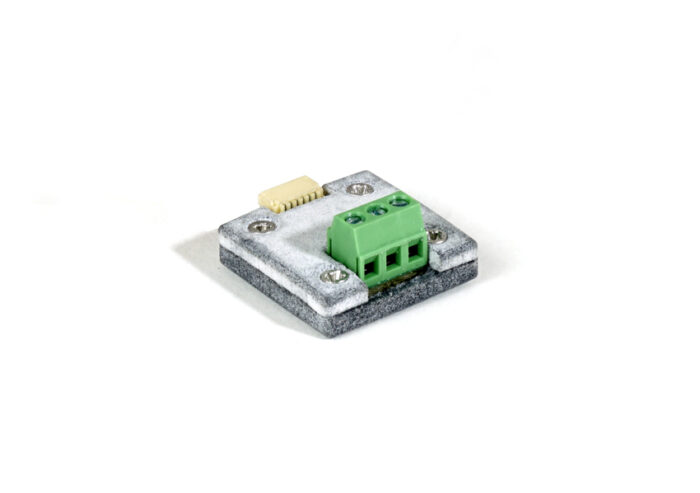

SMT10B31 – Voltage, Current and Power Sensor
Original price was: 50,00 €.40,00 €Current price is: 40,00 €.
Description
An accurate electrical sensor capable of measuring:
- positive voltages up to 85V, with an accuracy of +/-0.1%;
- positive and negative currents up to +/- 4A (extendable to 8A), with an accuracy of +/-0.1%;
- positive and negative load power up to 340 W.
It is primarily intended for testing small satellites (e.g. CubeSats) and performing various physics and STEM experiments, but also for automating electronic measurements.
The sensor has an SPI interface, but can be easily controlled via a smartphone or PC and monitored using MATLAB or Octave, when connected to any WiFi-enabled SpaceMotionery module including, among others, the SMT10D11S Standalone WiFi Module, the SMT01A01 1U Solar Simulator and the SMT02C13 Helmholtz Cage.
When connected to any WiFi-enabled module from SpaceMoptionery, it can be easily controlled via WiFi using a smartphone or PC and monitored using MATLAB or Octave.
Price is without cable. Cables are available in 40cm/1m/2m lengths. Other lengths are available on request.
Additional information
| Weight | 0,01 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
